U Tube Heat Exchanger

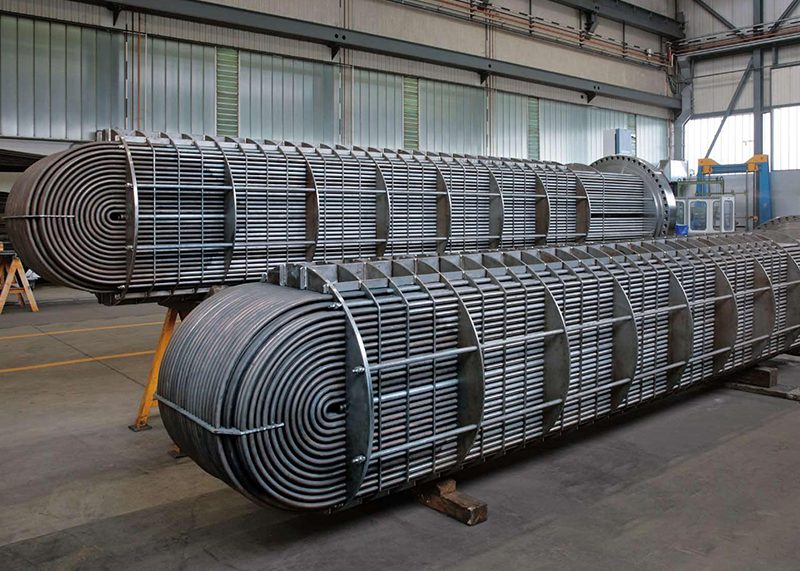

Our U-tube heat exchangers feature a shell-and-tube design, where one fluid flows through the tubes and the other around them within the shell. We offer two-pass and four-pass designs with baffles to optimize flow and prevent short-circuiting. For maximum efficiency, our counter-current heat exchangers provide the highest log mean temperature difference (LMTD) between hot and cold streams.

icon icon icon icon

Technical Specification

Design Code ASME, TEMA, API, EN 13445, IS 6088
Type Fixed Type Floating Head, U Tube, Kettle Boilers, Double Pipe, Cooling Coil
Capacity Range As Per Client Requirements
Shell Diameter Up to 3000 mm
Tube Length Up to 15000 mm
Material Carbon steel, Copper & its Alloys), SS in grades (AISI 304, 316, 316L, Duplex & Super duplex), Monel, Inconel, Titanium, Hast Alloy, etc
