Evaporator

Evaporator

Standards
  • Design Code & Standards : ASME, TEMA, API, EN 13445, IS 6088
  • Type : Fixed Tube, Floating Type, U Tube, Kettle Type, Double Pipe, Cooling Coil
  • M.O.C Tubes : Carbon Steel, Copper & its alloy, Stainless Steel (ss 304,316,316L), Duplex & Super Duplex SS, Monel, Inconel, Titanium, Hastalloy, etc
Capacity Range
  • Shell diameter : 3000 mm
  • Shell thickness : 25 mm
  • Overall length : 15000 mm
  • Tube sheet thickness : 250 mm
  • Max pressure : 200 kg/cm2(g)
  • Heat transfer area : 1 m2 to 2000 m2
  • Max weight : 50 Ton
  • Equipments can be customised as per client requirement
icon icon icon icon

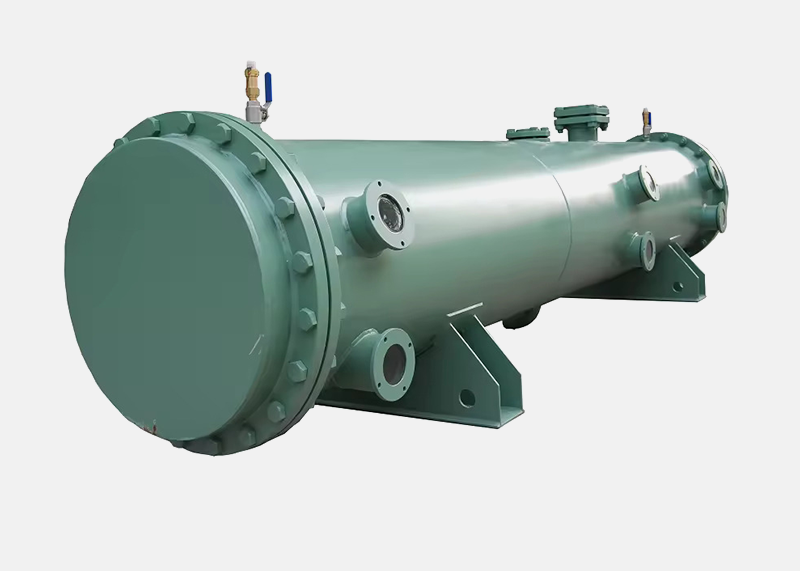

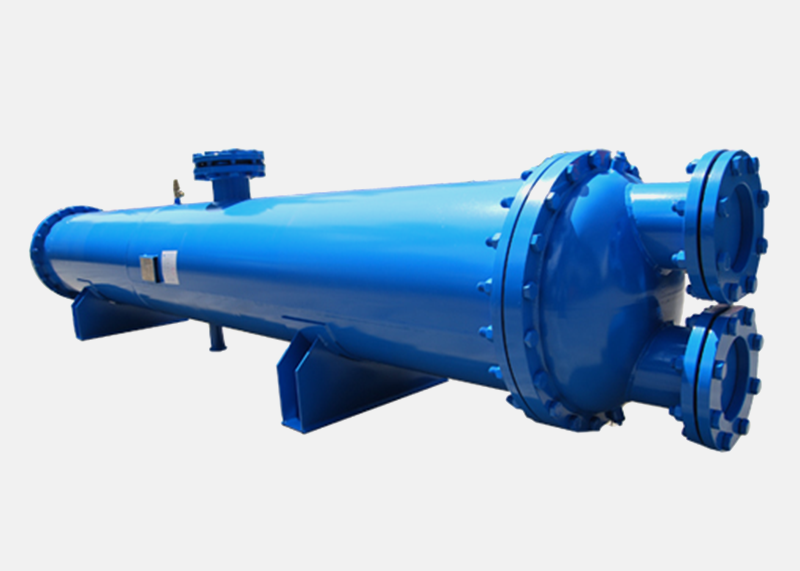

Evaporators

Our evaporators efficiently convert heavy concentrate solutes into vapor using thermal energy. Built with high-quality materials, they ensure durability, efficiency, and customization for mining, petrochemical, and chemical industries. We offer a range of evaporators tailored to specific client needs.

Kettle Evaporators

We manufacture kettle evaporators, where the liquid enters at the evaporator head and is evenly distributed into heating tubes. Key features include:

  • Thin Film Evaporation – Ensures efficient heat transfer and controlled vaporization.
  • Steam Heating – Uses steam to facilitate evaporation.
  • Parallel Flow System – Both product and vapor move downward due to gravity, enhanced by co- current vapor flow.
  • Efficient Separation – The concentrated product and vapor are separated in the lower section of the heat exchanger.

Our evaporators are designed for high efficiency and reliability, making them an ideal solution for industrial-scale concentration processes.
