Kettle Type Heat Exchanger

Kettle Type Heat Exchanger

Standards
  • Design Code & Standards : ASME, TEMA, API, EN 13445, IS 6088
  • Type : Fixed Tube, Floating Type, U Tube, Kettle Type, Double Pipe, Cooling Coil
  • M.O.C Tubes : Carbon Steel, Copper & its alloy, Stainless Steel (ss 304,316,316L), Duplex & Super Duplex SS, Monel, Inconel, Titanium, Hastalloy, etc
Capacity Range
  • Shell diameter : 3000 mm
  • Shell thickness : 25 mm
  • Overall length : 15000 mm
  • Tube sheet thickness : 250 mm
  • Max pressure : 200 kg/cm2(g)
  • Heat transfer area : 1 m2 to 2000 m2
  • Max weight : 50 Ton
  • Equipments can be customised as per client requirement
icon icon icon icon

Product Description

“Comp Air” undertakes design, manufacture, testing, certifications and code stamping of heat exchangers. We are certified under ISO 9001 : 2015 & OHSAS 18001 and also regular member of Benchmark 7QC and National Accreditation Board of Certifications Bodies (NABCB), constituent of Quality Council of India (QCI)

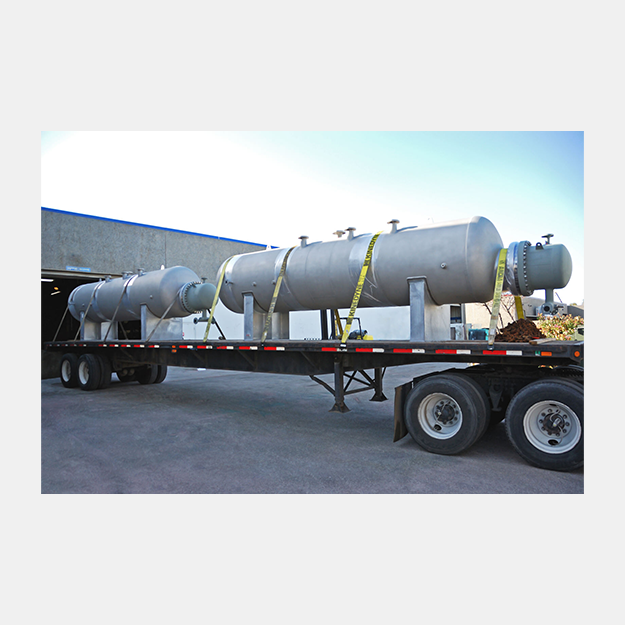

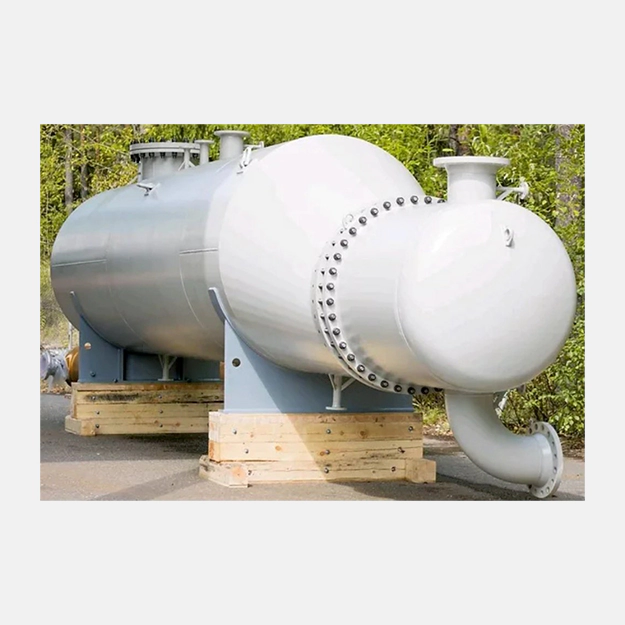

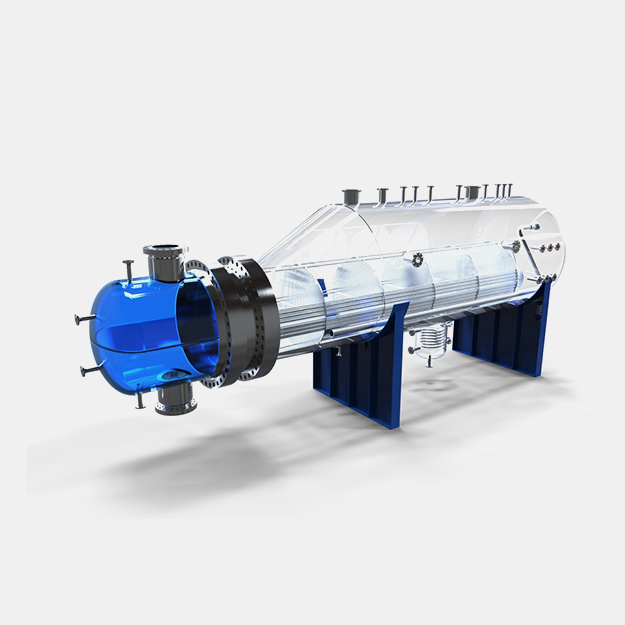

Kettle type heat exchangers, steam flows through the tube bundle and exits as condensate. These heat exchangers are used in industrial processes that require efficient heating or cooling of large volumes of liquid, particularly in applications where the liquid is likely to have a high thermal load. It is well designed with its large surface area and efficient heat transfer capabilities, making it suitable for these demanding applications.
