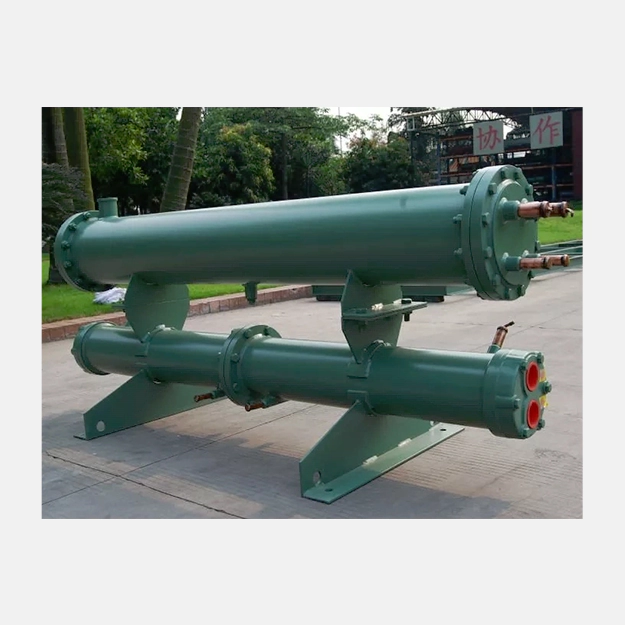

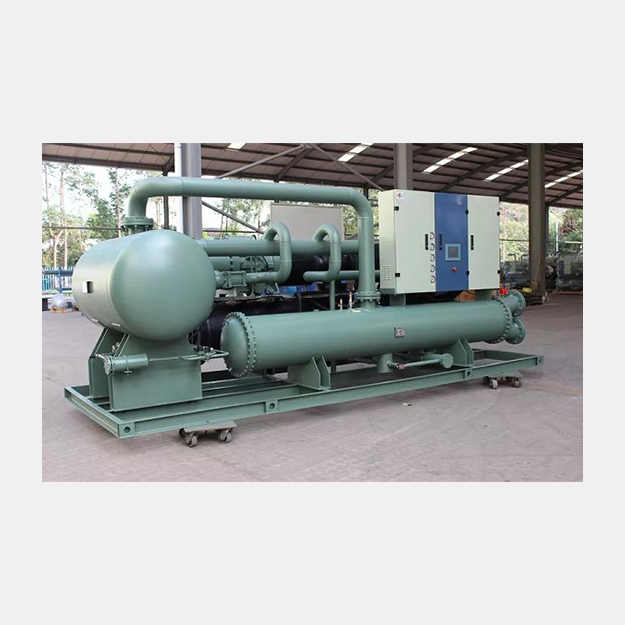

Backed by industry-leading expertise in air ventilation equipment manufacturing, we proudly offer a range of high-performance Shell and Tube Chillers & Condensers designed for efficiency, reliability, and durability.
Chillers & Condensers
Chillers & Condensers
Standards
- Design Code & Standards : ASME, TEMA, API, EN 13445, IS 6088
- Type : Fixed Tube, Floating Type, U Tube, Kettle Type, Double Pipe, Cooling Coil
- M.O.C Tubes : Carbon Steel, Copper & its alloy, Stainless Steel (ss 304,316,316L), Duplex & Super Duplex SS, Monel, Inconel, Titanium, Hastalloy, etc
Capacity Range
- Shell diameter : 3000 mm
- Shell thickness : 25 mm
- Overall length : 15000 mm
- Tube sheet thickness : 250 mm
- Max pressure : 200 kg/cm2(g)
- Heat transfer area : 1 m2 to 2000 m2
- Max weight : 50 Ton
- Equipments can be customised as per client requirement
Chillers & Condensers
Key Features & Technology
- Frequency Conversion Technology – Enhances functionality while reducing operational noise.
- Superior Copper Tubes – Ensures high thermal conductivity and durability.
- Advanced Protection Mechanisms – Includes overcurrent and low-voltage protection for safe operation.
- Low Mix Level Alert – Equipped with visual indicators for operational efficiency.
- Stable & Quiet Operation – Engineered for consistent performance with minimal noise.
Capacity & Quality Assurance
Available in a capacity range of 5 TR to 200 TR.
Subjected to rigorous quality testing, ensuring a zero-leakage guarantee.
Our Shell and Tube Chillers & Condensers deliver high efficiency, safety, and precision, making them ideal for diverse industrial applications.
