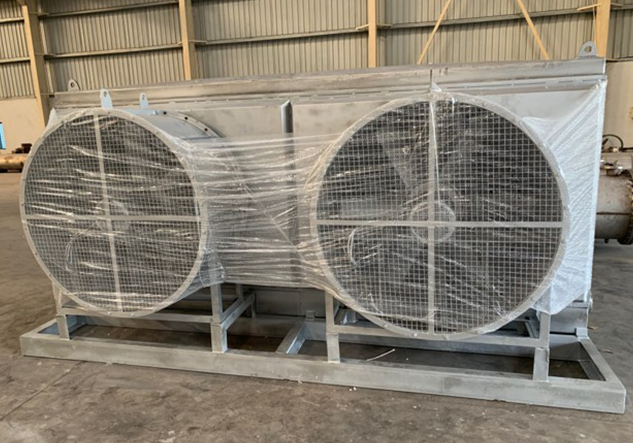

Installations

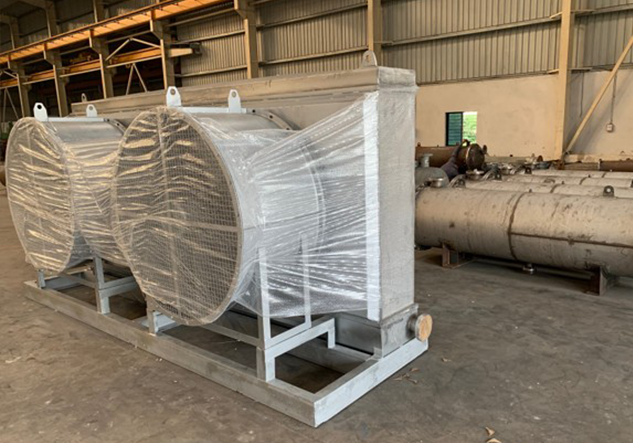

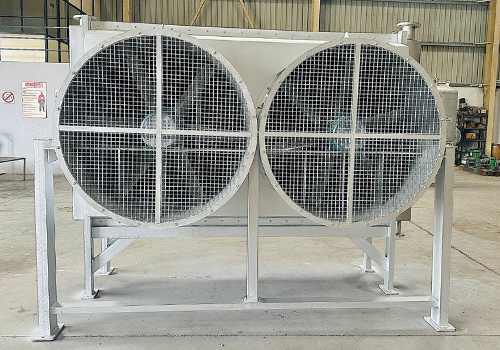

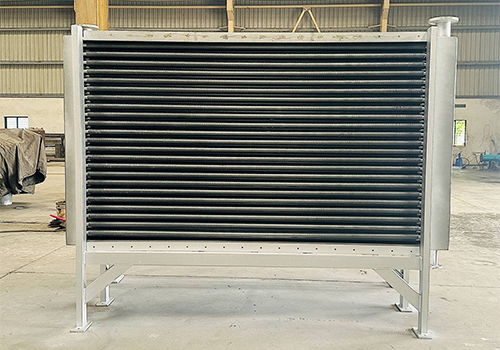

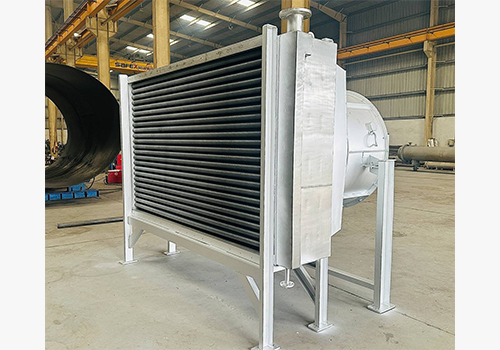

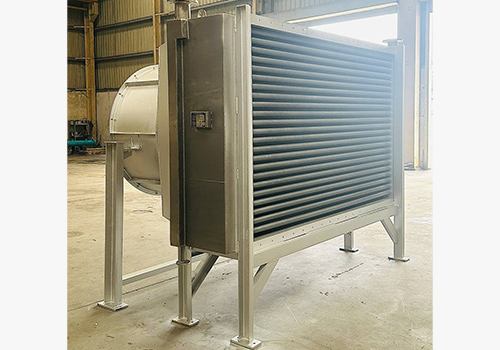

| EQUIPMENT NAME : | AIR COOLED HEAT EXCHANGER WITH AXIAL FLOW FANS. |
|---|---|
| CLIENT : | CHEMICAL INDUSTRY |
| DISPATCHED REGION : | KUTCH, GUJARAT. |
| MATERIAL OF CONSTRUCTION : | SS 316 L |
| TYPE : | FINNED TUBE TYPE (EXTRUDED FINS) |
| RADIOGRAPHY TEST : | SPOT |
| PWHT : | NA |
| TUBES : | SA 213 GR 316 L / SEAMLESS 25.4 MM OD X 2.77 MM THK X 3100 MM LONG (NO. OF TUBES : 200) |
| OVERALL DIMENSION : | 3500 MM LONG X 2000 MM WIDTH |
| HEAT CAPACITY : | 196000 KCAL/Hr |
| WEIGHT : | ~ 4500 Kg |
| QTY : | 02 NOS |

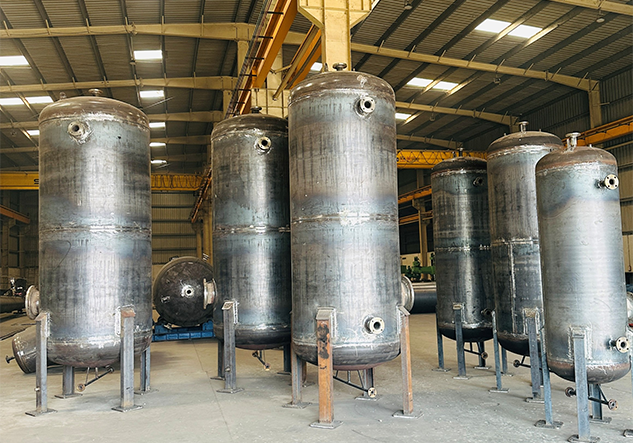

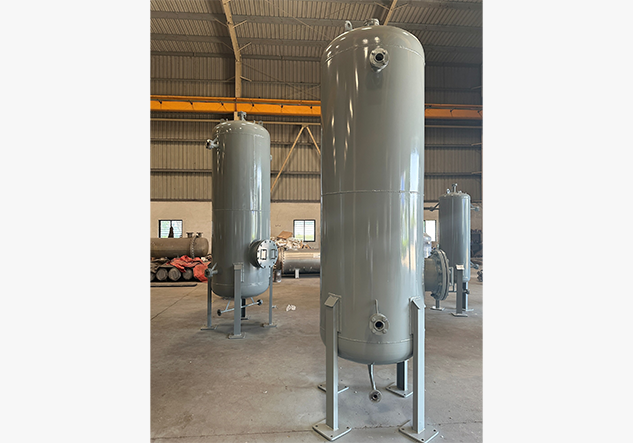

| EQUIPMENT NAME : | AIR / NITROGEN RECEIVER TANKS |
|---|---|
| Client : | STEEL PLANTS |
| Dispatched Region : | DAHEJ, GUJARAT |
| Material Of Construction : | SA 516 GR 70 |
| TYPE : | CYLINDRICAL VESSEL WITH TOP & BOTTOM DISHEND |
| RADIOGRAPHY TEST : | SPOT + ‘T’ JOINT |
| CAPACITY : | 5M3 / 10M3 / 15 M3 |
| QTY : | 15 NOS |
| WEIGHT : | 60 TONS |

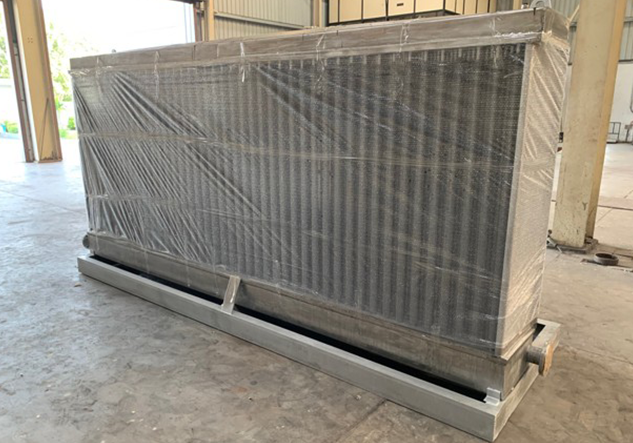

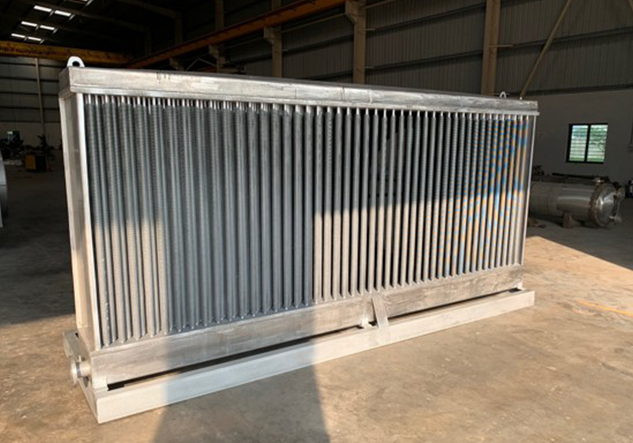

| EQUIPMENT NAME : | AIR COOLED HEAT EXCHANGER WITH AXIAL FLOW FANS. |
|---|---|
| Client : | PETRO CHEMICAL SECTOR |
| Dispatched Region : | CHENNAI, TAMIL NADU |
| Material Of Construction : | SS 316 L WITH ALUMINUM FINS |
| TYPE : | HEADER TYPE |
| RADIOGRAPHY TEST : | SPOT |
| TUBES : | EXTRUDED FIN TUBES |
| DIMENSION : | LENGTH : 4000 MM LENGTH X 1000 MM WIDTH X 1800 MM HEIGHT |
| QTY : | 02 NOS |
| WEIGHT : | 5 TONS EACH |

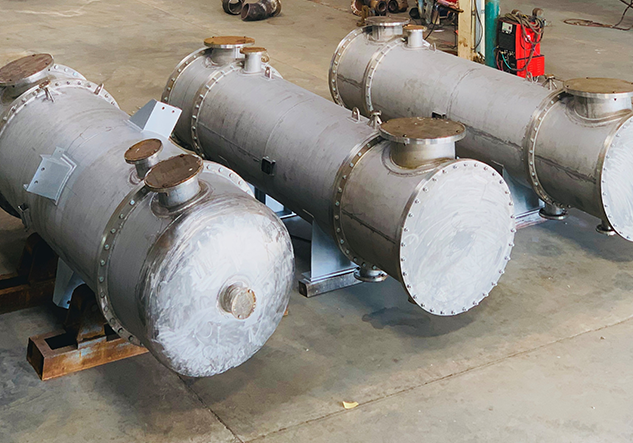

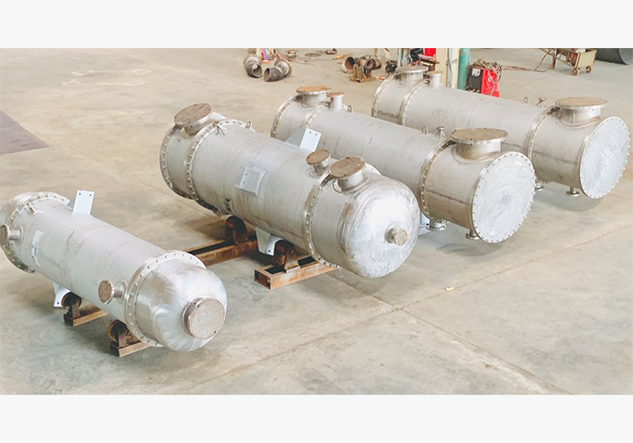

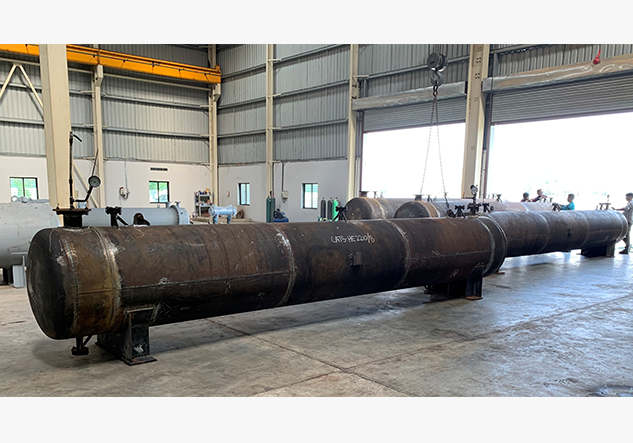

| EQUIPMENT NAME : | HEAT EXCHANGER |
|---|---|
| Client : | CHEMICAL SECTOR |
| Dispatched Region : | DAHEJ, GUJARAT |
| Material Of Construction : | SS 316 L |
| TYPE : | SHELL & TUBE TYPE / BEM |
| RADIOGRAPHY TEST : | 100% |
| PWHT : | NA |
| TUBES : | SA 213 GR 316 L |
| DIMENSION : | 25.4 MM OD X 2.11 MM THK X 3500 MM LONG |
| HEAT TRANSFER AREA : | 135 M2, 135 M2, 125 M2, 90 M2. |
| WEIGHT : | 32 TONS. |
| QTY : | 04 NOS |

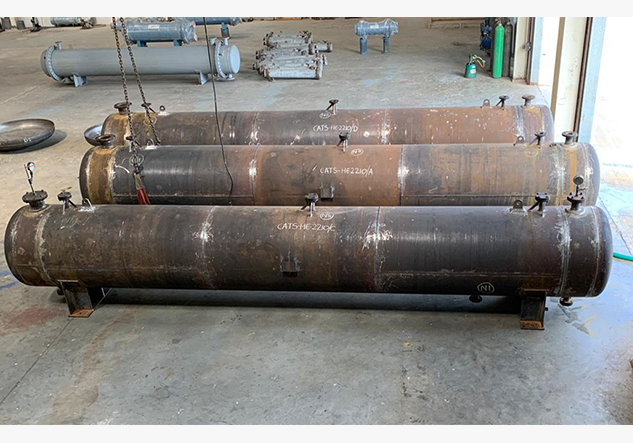

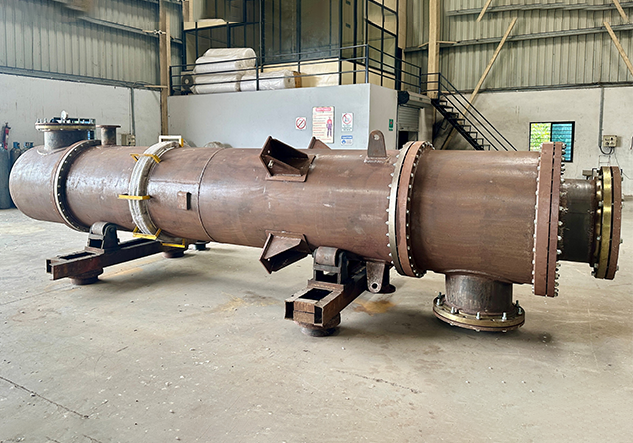

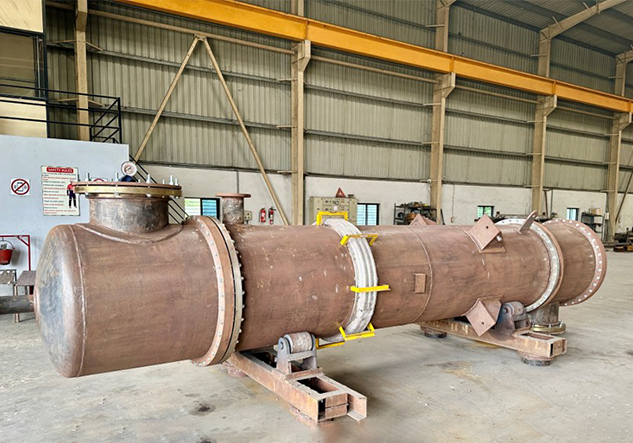

| EQUIPMENT NAME : | HEAT EXCHANGER |
|---|---|
| Client : | CHEMICAL SECTOR |
| Dispatched Region : | SHARJAH, UAE |
| Material Of Construction : | SA 516 GR 70 |
| TYPE : | SHELL & TUBE TYPE (FIXED TUBE SHEET) |
| RADIOGRAPHY TEST : | 100% |
| PWHT : | YES |
| TUBES : | SA 334 GR 6 |
| DIMENSION : | 63.50 MM OD X 14 SWG X 6100 MM LONG (60 NOS) |
| HEAT TRANSFER AREA : | 70 M2 |
| WEIGHT : | 15 TONS EACH |
| QTY : | 04 NOS |

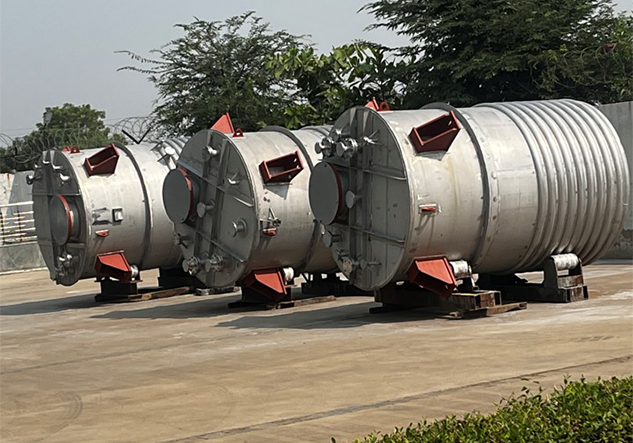

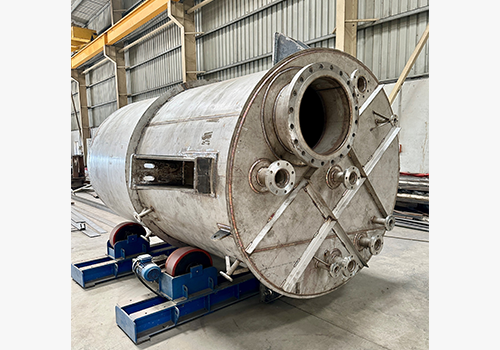

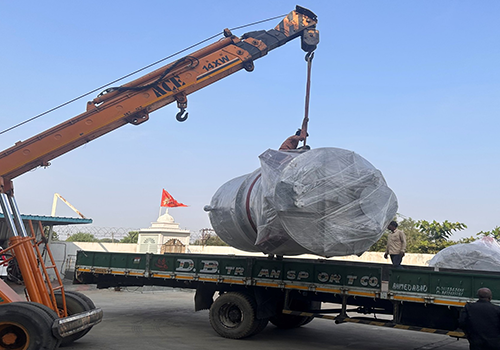

| EQUIPMENT NAME : | CHEMICAL STORAGE TANK WITH LIMPET COIL |
|---|---|
| Client : | SPECIALITY CHEMICAL INDUSTRY |
| Dispatched Region : | LOTTE, MAHASHTRA |
| Material Of Construction : | SA 240 GR 316 Ti |
| TYPE : | CYLINDRICAL VESSEL WITH LIMPET COIL |
| RADIOGRAPHY TEST : | 100% / FULL |
| CAPACITY : | 15 KL |
| QTY : | 03 NOS |
| WEIGHT : | 18 TONS |

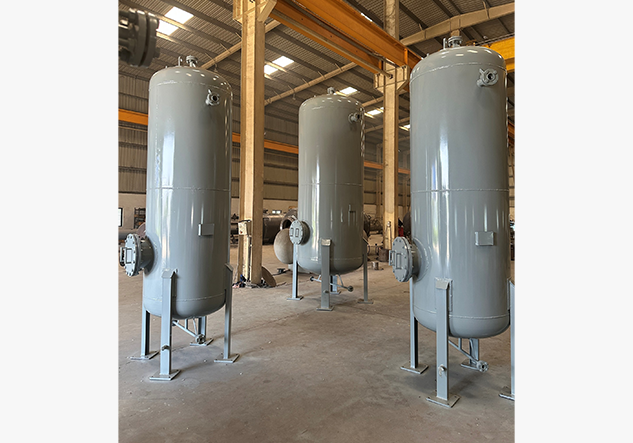

| EQUIPMENT NAME : | HIGH PRESSURE GAS STORAGE TANK |
|---|---|
| Client : | Oil & Gas Sector |
| Dispatched Region : | Kakinada, Andhra Pradesh |
| Material Of Construction : | SA 537 CL 1 |
| RT : | 100% |
| PWHT : | 100% |
| Dimension : | 1500 MM Width X 4200 MM W.L - W.L X 56 MM THK |
| Weight : | 9.5 Tons Each |
| EQUIPMENT NAME : | AIR COOLED HEAT EXCHANGER WITH AXIAL FLOW FANS. |
|---|---|
| Client : | Petro Chemical Sector |
| Dispatched Region : | Dahej, Gujarat |
| Material Of Construction: | SS 316 L |
| Type : | Header Type |
| Radiography Test : | Spot |
| Tubes : | Extruded Fin Tubes (120 NOS) |
| Dimension : | Length : 6000 MM & Width : 1800 MM |
| QTY : | 12 NOS |
| Weight : | 7.5 Tons Each |
| EQUIPMENT NAME : | FALLING FILM RE-BOILER |
|---|---|
| Client : | Chemical Industry |
| Dispatched Region : | Jhagadia, Bharuch, Gujarat |
| Material Of Construction : | SA 516 GR 70 / SS 316 L |
| TYPE: | Shell & Tube Type |
| RADIOGRAPHY TEST: | 100% |
| TUBES : | SA 213 GR 316 L |
| Dimension : | 50.8 MM OD X 2.11 MM THK X 4050 MM LONG (160 NOS) |
| Heat Transfer Area | 100 M2 |
| Weight : | 4.48 Tons |

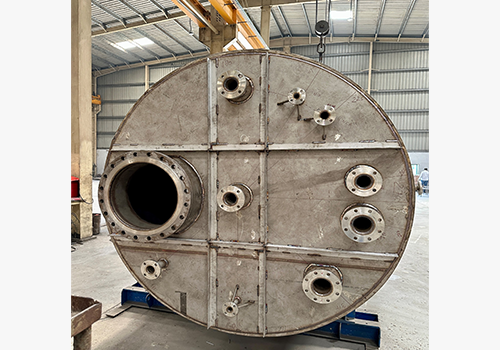

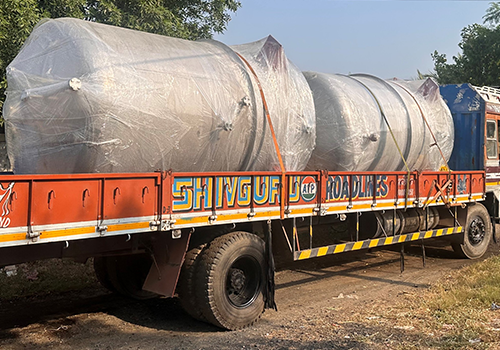

| EQUIPMENT NAME : | CHEMICAL STORAGE TANKS |
|---|---|
| Client : | Speciality Chemical Industry |
| Dispatched Region : | Mundra Sez, Gujarat |
| Material Of Construction : | SS 904 L |
| Type : | Cylindrical With Dishend |
| Radiography Test : | 100% |
| Dimension : | Length : 2000 MM ID X 3000 MM W.L – W.L X 12 MM THK |
| QTY : | 8 NOS |
| Weight : | 4.2 Tons Each |
| EQUIPMENT NAME : | TUBE BUNDLES. |
|---|---|
| Client : | Fertiliser Sector |
| Dispatched Region : | Vadodara, Gujarat |
| Material Of Construction : | SA 266 GR 2 / SA 179 |
| Type : | "U" Tube |
| Tubes : | SA 179 (162 & 65 NOS) |
| Dimension : | Length 1 : 19.05 MM OD X 2.11 MM THK X 4000 MM ST. Length Length 2 : 19.05 MM OD X 2.11 MM THK X 2000 MM ST. Length |
| QTY : | 4 NOS + 2 NOS |
| Weight : | 4.5 Tons |

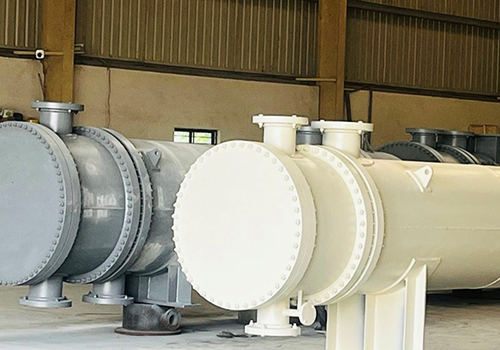

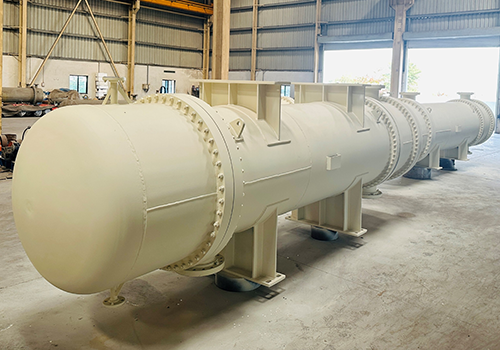

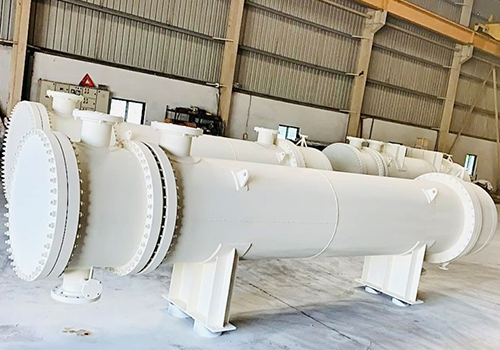

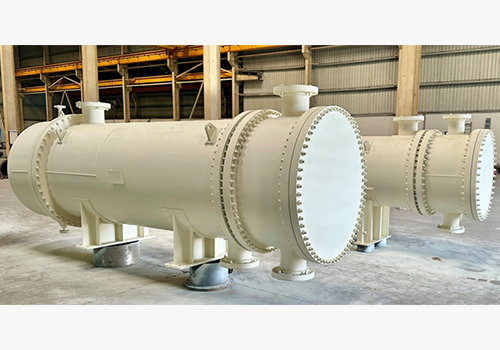

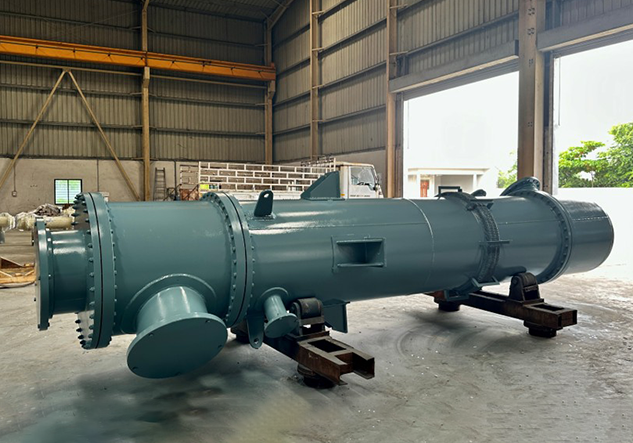

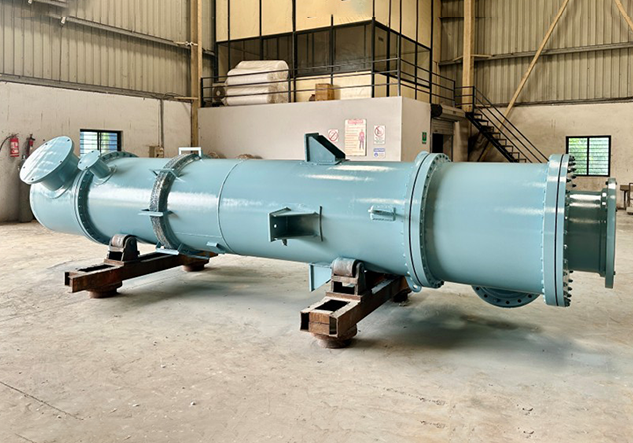

| EQUIPMENT NAME : | CRUDE OIL HEAT EXCHANGERS |
|---|---|
| Client : | Oil & Gas Sector |
| Dispatched Region : | Saudi Arabia |
| Material Of Construction : | SA 516 GR 70 / SA 266 CL2 |
| Type : | Shell & Tube Type (Floating Head) |
| Radiography Test : | 100 % |
| PWHT : | Yes |
| Tubes : | SA 179 |
| Dimension : | 25.4 MM OD X 2.11 MM THK X 4880 MM LONG (831 NOS) |
| HEAT Transfer Area | 325 M2 |
| Weight : | 12.5 Tons |

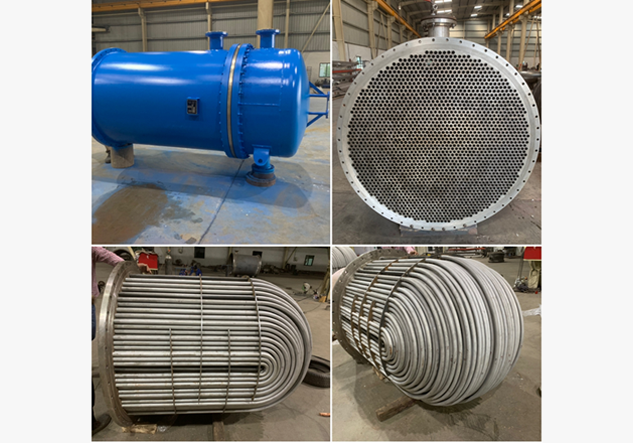

| EQUIPMENT NAME : | “U” TUBE HEAT EXCHANGER |
|---|---|
| Client : | IRON & STEEL INDUSTRY |
| Dispatched Region : | BHILAI, CHHATTISGARH |
| Material Of Construction : | SA 516 GR 70 & SS 316 L |
| Type : | SHELL & TUBE TYPE / BEU |
| RADIOGRAPHY TEST : | 100 % |
| PWHT : | NA |
| Tubes : | SA 213 TP 316 L |
| Dimension : | 25.4 MM OD X 2.11 MM THK X 1000 MM ST.LENGTH (532 NOS) |
| HEAT TRANSFER AREA : | 115 M2 |
| WEIGHT : | 4.5 TONS |

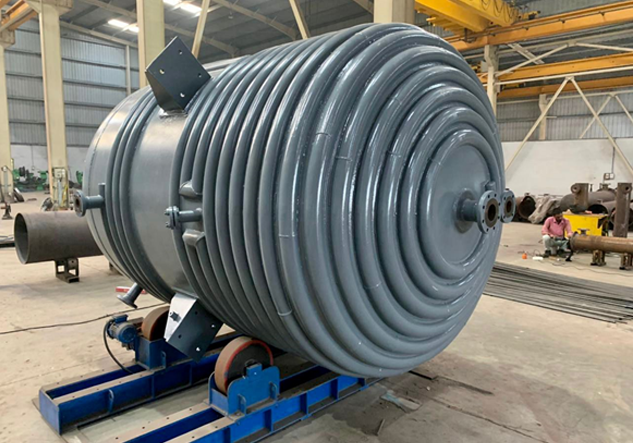

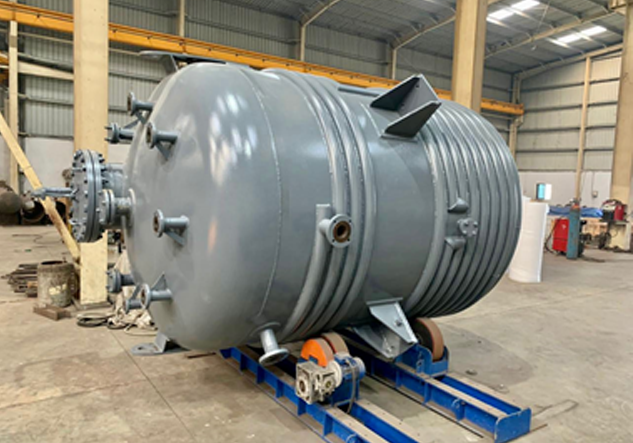

| EQUIPMENT NAME : | REACTOR VESSEL |
|---|---|
| Client : | SPECIALITY CHEMICAL INDUSTRY |
| Dispatched Region : | DAHEJ, GUJARAT |
| Material Of Construction : | SA 516 GR 70 |
| Type : | CYLINDRICAL VESSEL WITH LIMPET COIL |
| Radiography Test : | 100 % |
| Dimension : | 2000 MM ID X 3200 MM W.L – W.L X 10 MM THK |
| QTY : | 2 NOS |
| WEIGHT : | 6 TONS EACH |

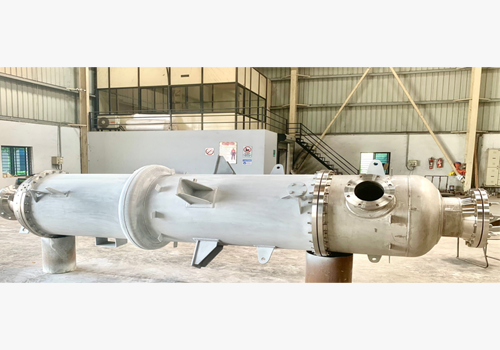

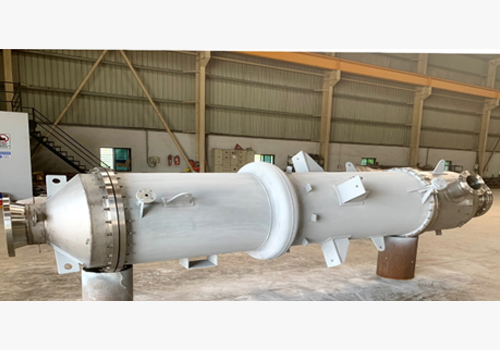

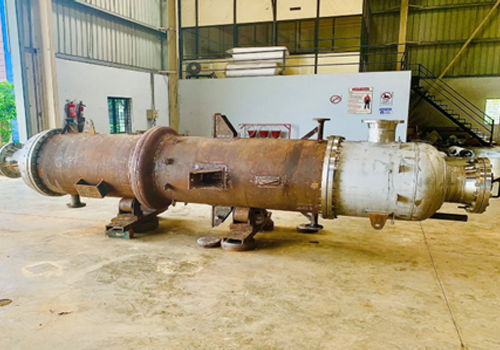

| EQUIPMENT NAME : | REBOILER / FLAME ARRESTER |
|---|---|
| Client : | Chemical Industry |
| Dispatched Region : | Assam |
| Material Of Construction : | SA 516 GR 70 / SS 316 L |
| Type : | SHELL & TUBE TYPE |
| Radiography Test : | 100 % |
| PWHT : | YES |
| TUBES : | SA 213 GR 316 L |
| Dimension : | 45 MM OD X 3.66 MM THK X 5000 MM LONG (248 NOS) |
| HEAT TRANSFER AREA : | 175 M2 |
| WEIGHT : | ~ 12 TONS |
