Oil Coolers

Oil Coolers

Standards
  • Design Code & Standards : ASME, TEMA, API, EN 13445, IS 6088
  • Type : Fixed Tube, Floating Type, U Tube, Kettle Type, Double Pipe, Cooling Coil
  • M.O.C Tubes : Carbon Steel, Copper & its alloy, Stainless Steel (ss 304,316,316L), Duplex & Super Duplex SS, Monel, Inconel, Titanium, Hastalloy, etc
Capacity Range
  • Shell diameter : 3000 mm
  • Shell thickness : 25 mm
  • Overall length : 15000 mm
  • Tube sheet thickness : 250 mm
  • Max pressure : 200 kg/cm2(g)
  • Heat transfer area : 1 m2 to 2000 m2
  • Max weight : 50 Ton
  • Equipments can be customised as per client requirement
icon icon icon icon

Product Description

“Comp Air” undertakes design, manufacture, testing, certifications and code stamping of heat exchangers. We are certified under ISO 9001 : 2015 & OHSAS 18001 and also regular member of Benchmark 7QC and National Accreditation Board of Certifications Bodies (NABCB), constituent of Quality Council of India (QCI)

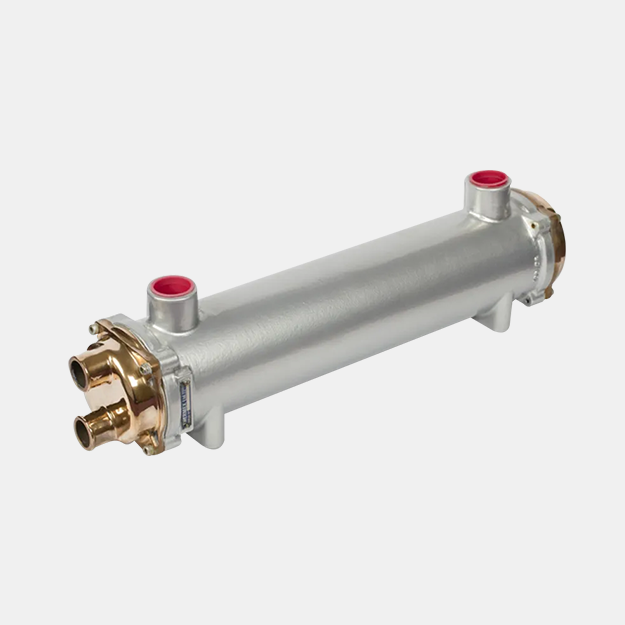

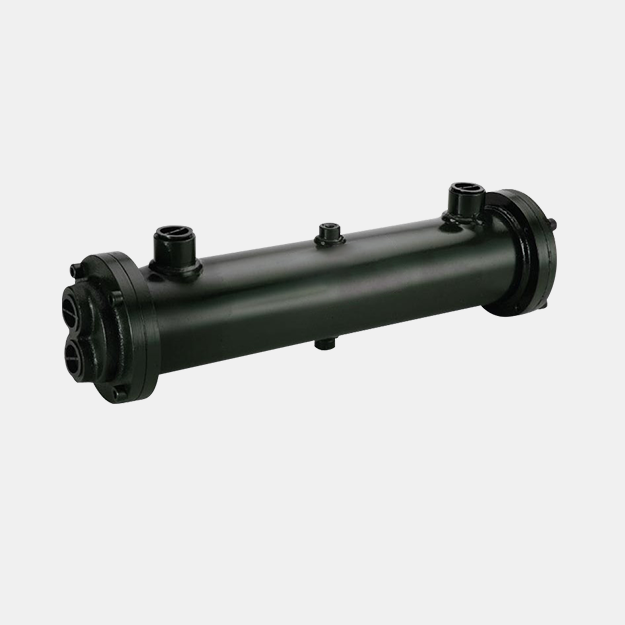

Oil Coolers are generally used for cooling of oil, which gets heated up in gear boxes, ID fans, extrusion press, couplings, rotating shafts etc. We carry out thermal, mechanical design and then manufacture the entire ranges of Oil Coolers suitable for Gear Boxes manufactured by M/S Elecon, Greaves, Shanthi Gears, Walchandnagar etc for their different capacities Gear Boxes. These Coolers are manufactured as per the codes specified by the customer like TEMA RCB and ASME Codes.

Generally the Oil Coolers are manufactured out of the Carbon Steel and Copper/Admiralty/Stainless Steel/Cupro-Nickel (90:10)/Cupro-Nickel(70:30) Tubes depending upon the type of cooling water available.

We also have data regarding the various Oil Coolers supplied with various Gear Boxes from gear Box manufacturers. In that case we confirm our design and parameters vis a vis the existing ones and manufacture the same.

We carry out the manufacture of Oil Coolers exactly as per the Client's existing Coolers. For the same we depute our technical representative to Client's Site, examine the Cooler and manufacture the new Oil Cooler exactly as per the existing ones. This basically ensures that the new Oil Cooler is exactly inter-changeable with the old ones.

If you are not satisfied with the amount of Oil Cooling provided by your Oil Cooler request you to kindly send us the following data to enable us to get back to you with a proper solution.
