| Design Code | ASME, TEMA, API, EN 13445, IS 6088 |
| Type | Fixed Type Floating Head, U Tube, Kettle Boilers, Double Pipe, Cooling Coil |
| Capacity Range | As Per Client Requirements |
| Shell Diameter | Up to 3000 mm |
| Tube Length | Up to 15000 mm |
| Material | Carbon steel, Copper & its Alloys), SS in grades (AISI 304, 316, 316L, Duplex & Super duplex), Monel, Inconel, Titanium, Hast Alloy, etc |
Established in 1994, Comp Air began its journey by manufacturing Shell and Tube Heat Exchangers for the Chemical, Petrochemical, and Power Generation industries. Over the years, we have expanded our expertise and are now recognized globally for our high-quality engineering solutions across various sectors, including Energy, Chemical, Pharmaceutical, Food & Beverage, and Pulp & Paper industries.

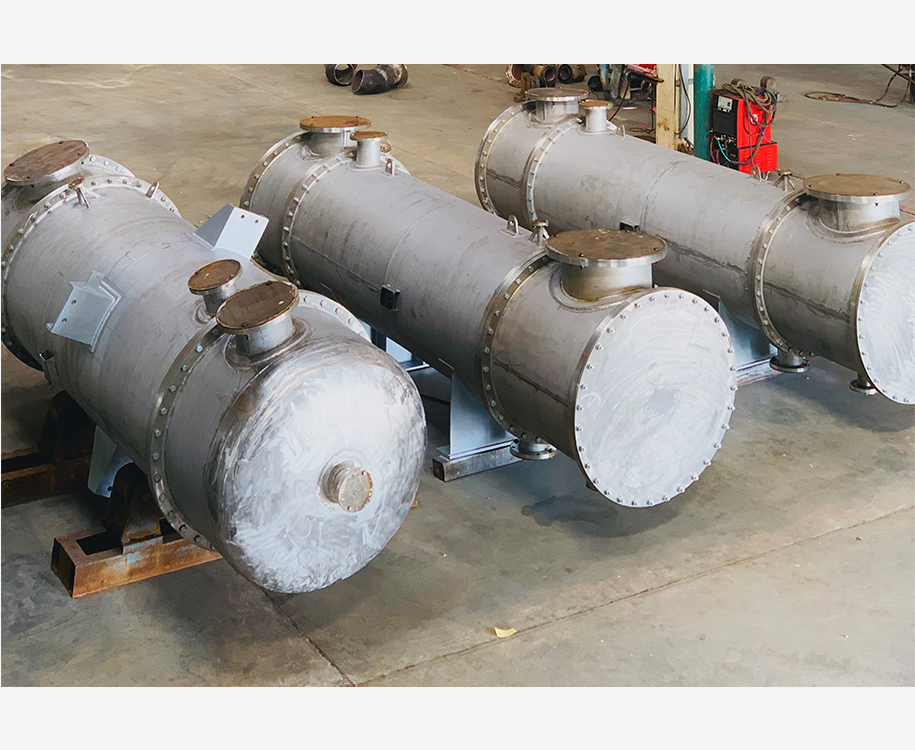

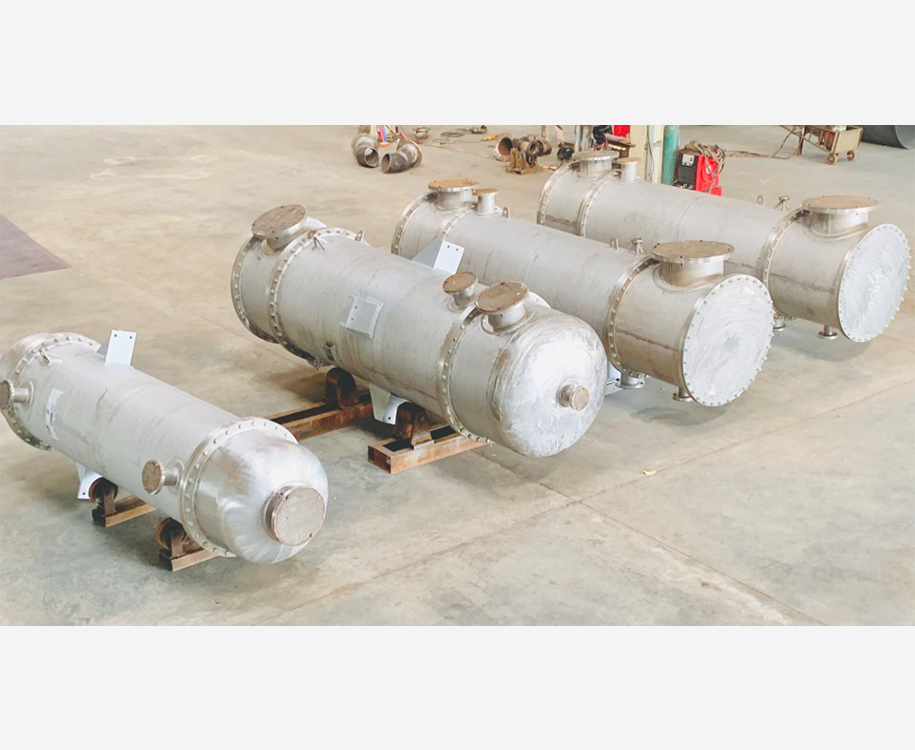

Get a quote Get a quote| EQUIPMENT NAME : | HEAT EXCHANGER |
|---|---|
| Client : | CHEMICAL SECTOR |
| Dispatched Region : | SHARJAH, UAE |
| Material Of Construction : | SA 516 GR 70 |
| TYPE : | SHELL & TUBE TYPE (FIXED TUBE SHEET) |
| RADIOGRAPHY TEST : | 100% |
| PWHT : | YES |
| TUBES : | SA 334 GR 6 |
| DIMENSION : | 63.50 MM OD X 14 SWG X 6100 MM LONG (60 NOS) |
| HEAT TRANSFER AREA : | 70 M2 |
| WEIGHT : | 15 TONS EACH |
| QTY : | 04 NOS |

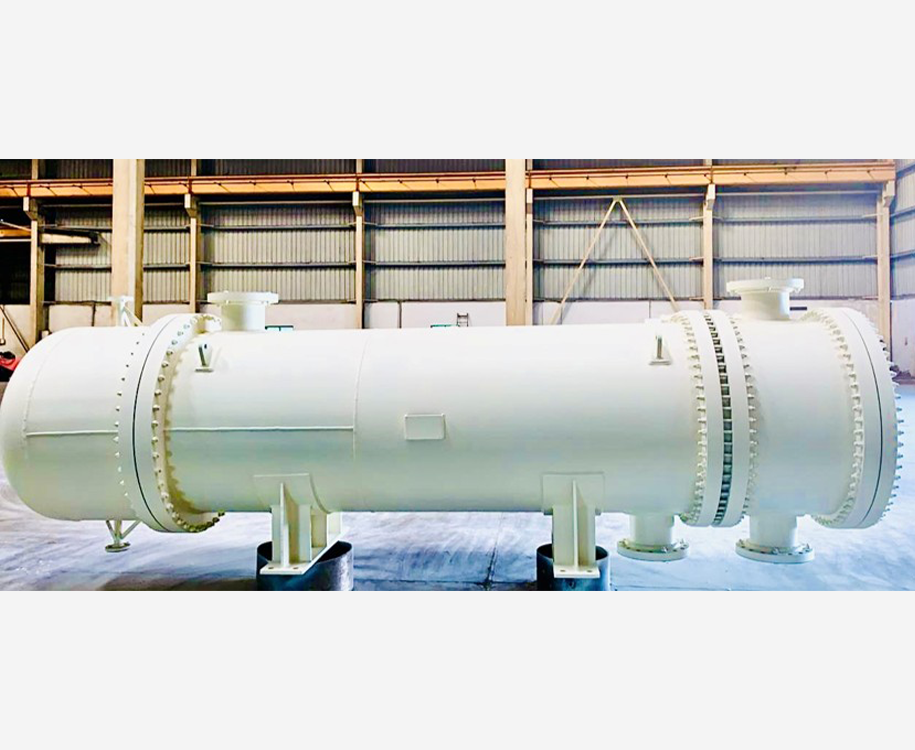

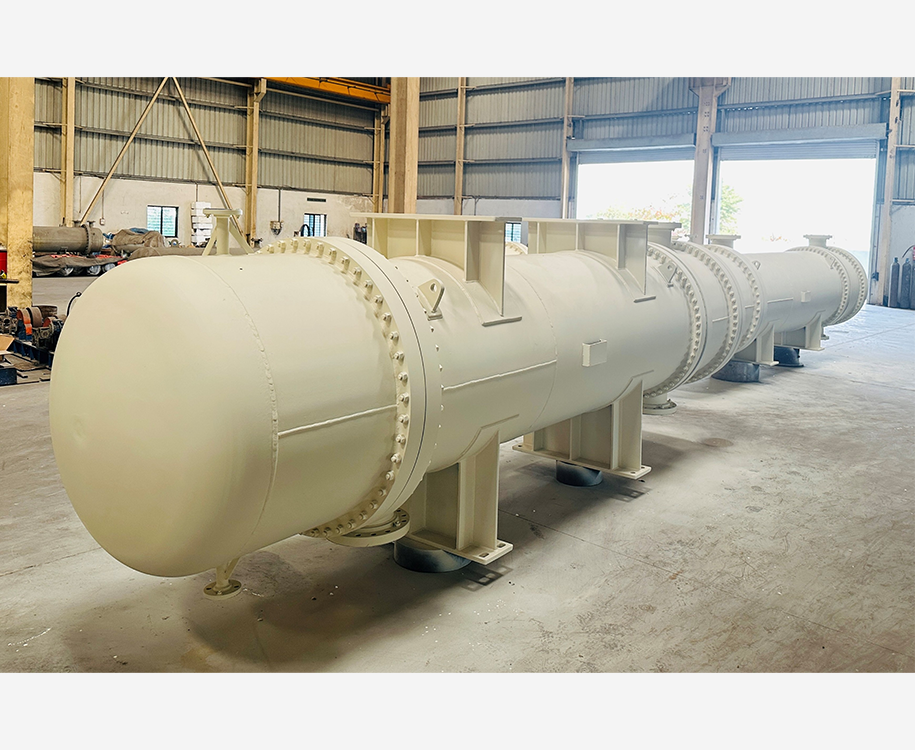

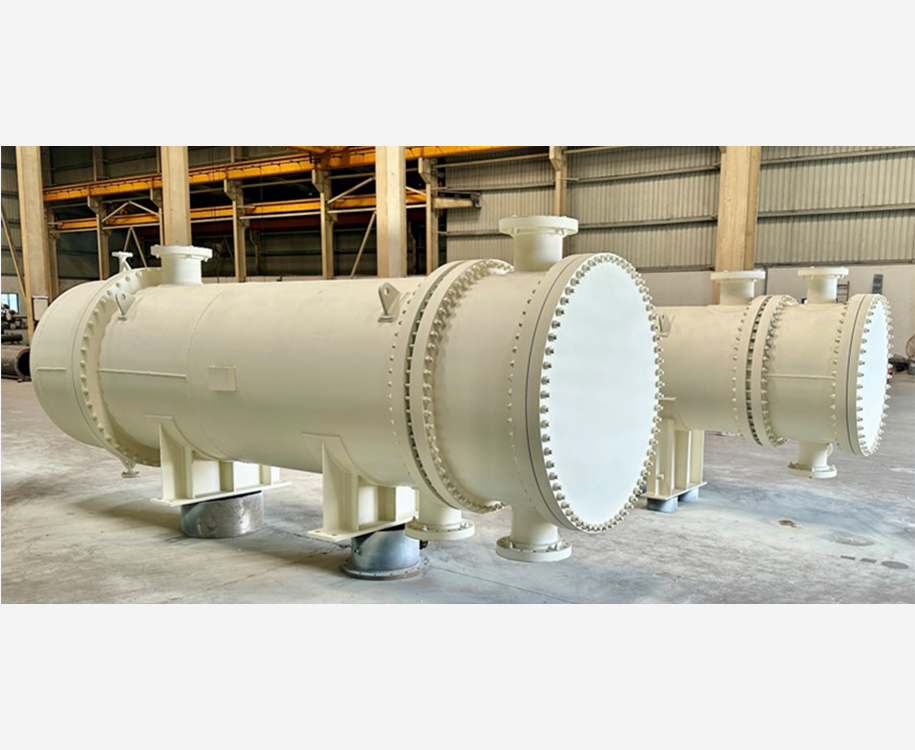

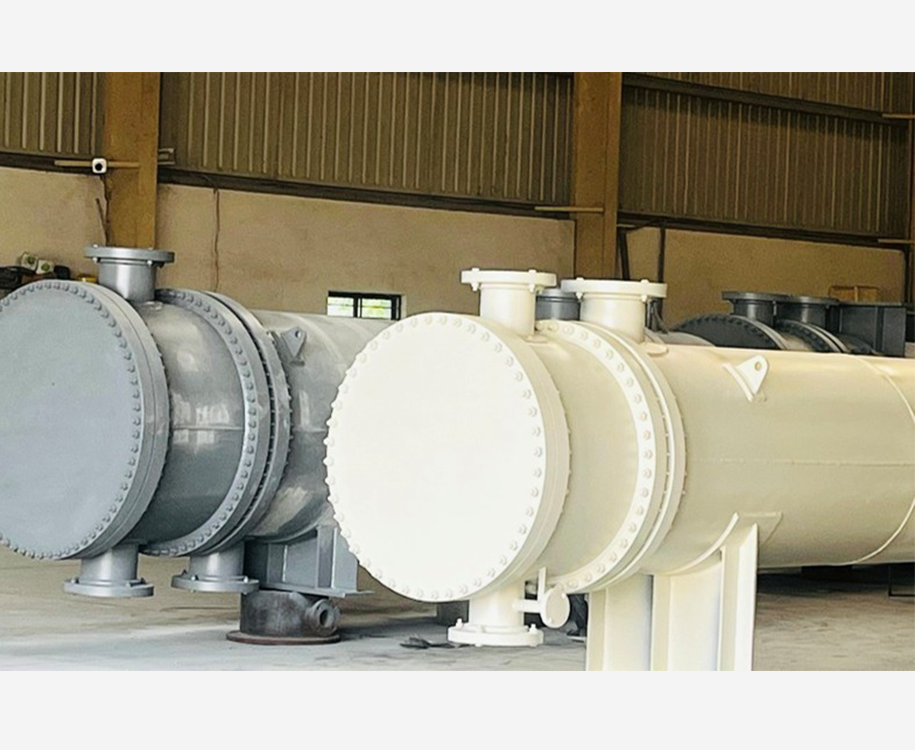

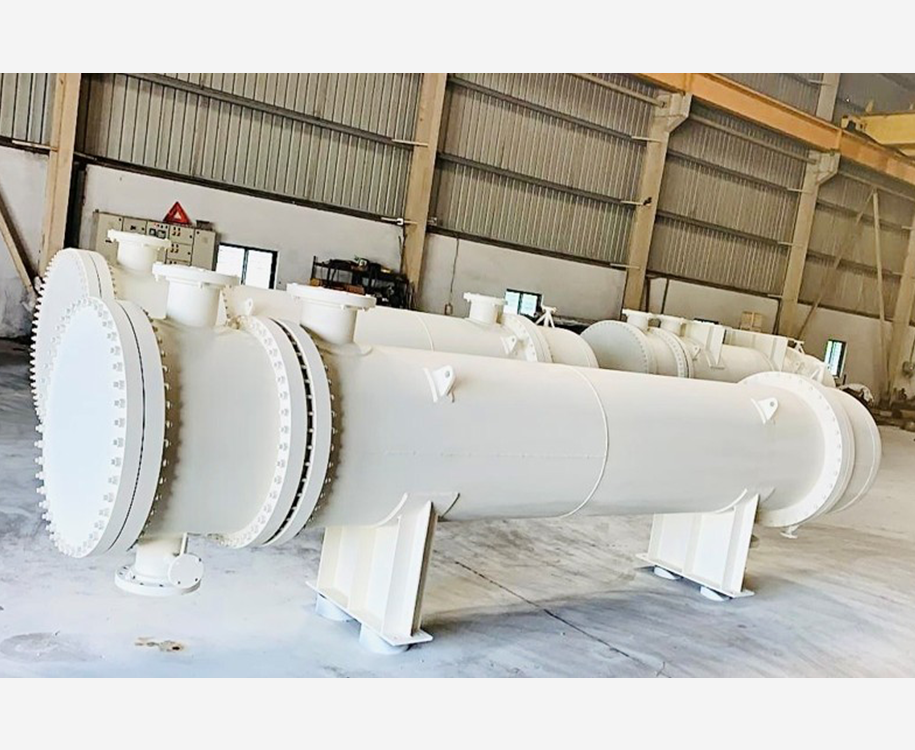

| EQUIPMENT NAME : | CRUDE OIL HEAT EXCHANGERS |
|---|---|
| Client : | Oil & Gas Sector |
| Dispatched Region : | Saudi Arabia |
| Material Of Construction : | SA 516 GR 70 / SA 266 CL2 |
| Type : | Shell & Tube Type (Floating Head) |
| Radiography Test : | 100 % |
| PWHT : | Yes |
| Tubes : | SA 179 |
| Dimension : | 25.4 MM OD X 2.11 MM THK X 4880 MM LONG (831 NOS) |
| HEAT Transfer Area | 325 M2 |
| Weight : | 12.5 Tons |
Comp Air” was awarded ISO 9002 in 1997 and ISO 9001 in 1999, and also EMC approval in 1998. These certificate our commitment to produce quality and reliability to meet the customer's demand wherever & whenever they need us.
